1. Electrical Specifications
Item Specifications
Rx Tx
   Frequency Range 890.2 ~ 900MHz 935 ~ 945MHz
   Insertion Loss (Max.) Fc 0.5dB 0.4dB
In Band 1.5dB 0.5dB
   Attenuation (Min.) 40dB @800 ~889.515MHz -
   Return Loss (Min.) 19dB
   Temperature Range -10กษ ~ +60กษ

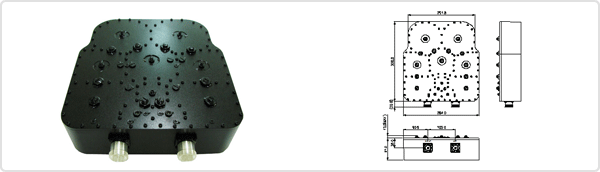

   Size (W x D x H) (mm) 284.0 x 300.0 x 94.0
   Group Delay (Max.) 1000ns

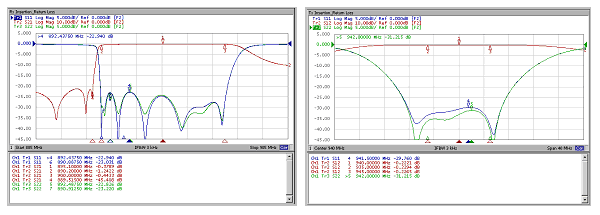

[Rx Path]
[Tx Path]
