Item |
Specifications |
BPF1 |
BPF2 |
BPF3 |
BPF4 |
Frequency range |
0.5 ~ 1.15GHz |
0.65 ~ 1.45MHz |
0.95 ~ 1.75MHz |
1.25 ~ 2.0MHz |
Insertion Loss (Max.) |
2.5dB |
Ripple (Min.) |
1.0dB |
Return Loss (Min.) |
15dB |
Attenuation |
60dBc Min. |
Fl-100MHz |
Fl-110MHz |
Fl-150MHz |
Fl-200MHz |
60dBc Min. |
Fh+250MHz |
Fh+300MHz |
Fh+300MHz |
Fh+350MHz |
30dBc Min. |
1.4~6.0MHz |
1.75~6.0MHz |
2.05~6.0MHz |
2.35~6.0MHz |
IN/OUT Port |
Drop In |
Weight (Max.) |
20 g |

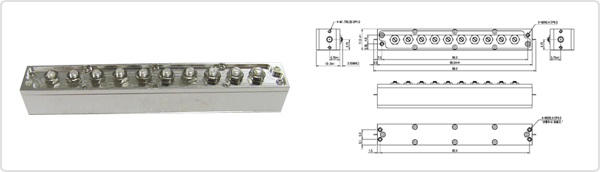

[BPF1] |
|
*Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
