Item |
Specifications |
60MHz LC BPF |
Frequency range |
56 ~ 64 MHz |
Insertion Loss (Max.) |
6.5 dB (@3dB BW) |
Return Loss (Min.) |
14.0 dB |
3dB Bandwidth (Max.) |
9 ~ 11 MHz |
Attenuation (Min.) |
40 dBc (Fc±10MHz) |
Operating Temperature |
-40℃ ~ +85℃ |

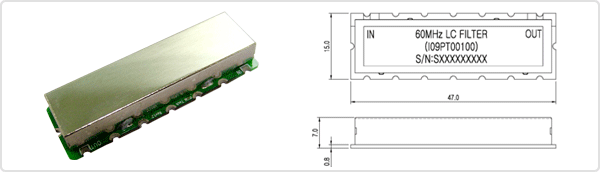

Dimension (Max.) |
47.0Ąż15.0Ąż7.5 |
Input /Output Connectors |
SMD |
*Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
