Item |
Specifications |
Frequency range |
9 ~ 10GHz (Fc:9.5GHz) |
Insertion Loss (Max.) |
1.0dB |
Ripple (Max.) |
0.6dB |
Return Loss (Min.) |
18dB |
Attenuation (Min.) |
7.785GHz ~ 8.785GHz |
30dB |
2nd harmonic Rejection (Min.) |
30dB @ 5.4GHz~6.2GHz |
In/Out Port |
In : SMA(M), OUT:SMA(F) |
Input Power |
Peak 5KW (impulse duty cycle:10%), |
Size (W x D x H) (mm) |
44.0 x 21.0 x 15.0 (± 1.0) |
Temperature Range |
-40กษ ~ +85℃ |

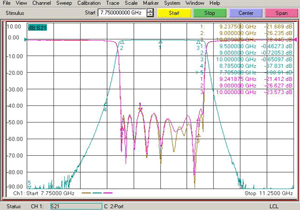

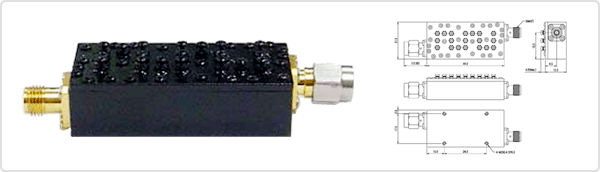

*Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
