Item |
Specifications |
BPF1 |
BPF2 |
BPF3 |
Frequency range |
2.0 ~ 3.65GHz |
3.15 ~ 4.85MHz |
4.35 ~ 6.0MHz |
Insertion Loss (Max.) |
2.5dB |
Ripple (Min.) |
1.0dB |
Return Loss (Min.) |
15dB |
Attenuation |
60dBc Min. |
Fl-650MHz |
Fl-800MHz |
Fl-850MHz |
60dBc Min. |
Fh+170MHz |
Fh+1600MHz |
Fh+1500MHz |
30dBc Min. |
7.5~12.0MHz |
7.5~15.0MHz |
7.5~18.0MHz |
IN/OUT Port |
GPO Conn. |
Weight (Max.) |
26 g |

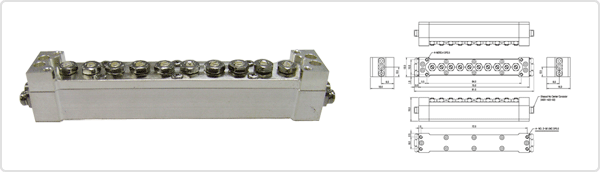

[BPF1] |
|
*Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
