| Item |
Specifications |
| Frequency Range |
470 ~ 862MHz |
| Insertion
loss(Max.) |
f0¡¾2.75MHz(@Fv, @Fs) |
0.70dB |
| Return Loss (Min.) |
25dB |
| 2nd harmonic Rejection (Min.) |
50dB |
| Attenuation (Min.) |
Fc ¡¾ 8.25MHz
(@Fv-5.5§Ö, @Fs+5.5§Ö) |
30dB |
| Group Delay (Max.) |
100ns |
| Power Rating (Ave.) |
120W |
| In/Out Port |
N - Female |
| Temperature Range |
-10¡É ~ +50¡É |

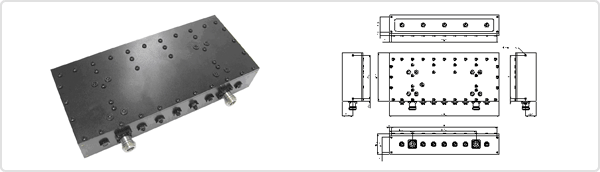

| Size (W x D x H) (mm) |
228.0 x 100.0 x 42.0 |
| Weight (Max.) |
1.5Kg |
|
|
|
|
