| Item |
Specifications |
| Frequency Range |
1450 ~ 1500MHz |
| Insertion Loss (Max.) |
Fc |
0.65dB |
0.8dB |
| Fc กพ 0.5MHz |
0.7dB |
0.85dB |
| Attenuation (Min.) |
Fc กพ 1.8MHz |
15dB |
| Fc กพ 3MHz |
40dB |
| 174 ~ Fc-3MHz |
20dB |
| Fc + 3 ~ 3Fc MHz |
20dB |
| Return Loss (Min.) |
26.44dB |
| Group Delay (Max.) |
110ns |
| Temperature Range |
0กษ ~ +50กษ |
| Port Type |
7/16" DIN - Female |
| Size (W x H x D) (mm) |
234.0 x 194.0 x 97.0 |
306.0 x 266.0 x 138.6 |

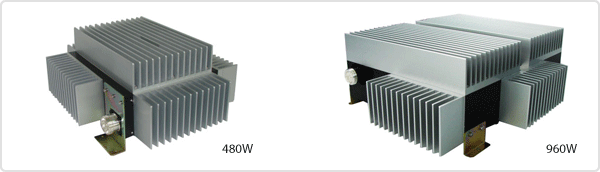

| Input Power |
480W |
960W |
| Weight (Max.) |
11Kg |
23Kg |
|
|
|
|
