| Item |
Specifications |
| Frequency Range |
470 ~ 862MHz |
Insertion Loss
(Max.) |
NB |
Fc |
1.0dB |
| Fc กพ 3.8MHz |
2.8dB |
| WB |
Fc |
0.3dB |
| Fc กพ 3.8MHz |
2.8dB |
| Attenuation (Min.) |
Fc กพ 4.2MHz |
14.0dB |
| Fc กพ 6MHz |
21.0dB |
| Fc กพ 12MHz |
36.0dB |
| Return Loss (Min.) |
NB |
30dB |
| WB |
20dB |
| Isolation (Min.) |
30dB |
| In/Out Port |
N - Female |
| Temperature Range |
-10กษ ~ +50กษ |

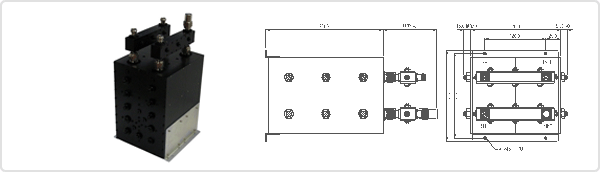

| Size (W x D x H) (mm) |
184.0 x 209.0 x 340.4 |
| Weight (Max.) |
9Kg |
| กุ NOTE : NB-> Narrow Band, WB-> Wide Band |
|
|
|
|
