Item
Specifications
   Frequency Range

174.512~197.504MHz
(CH 7~CH10)

198.512~215.504MHz
(CH 11~CH13)

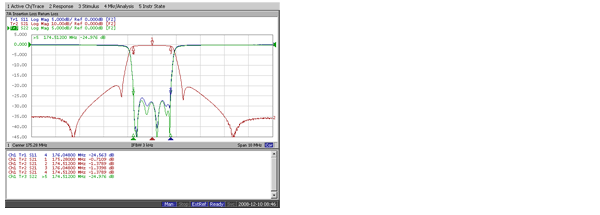

   Insertion Loss (Max.) 1.8dB 2.0dB
   Ripple (Min.) 1.5dB 1.5dB
   Return Loss (Min.) 20dB
   Attenuation (Min.) Fc ± 0.97MHz 8.0dBc
Fc ± 1.75MHz 40dBc
0 ~ (Fc-5MHz) 60dBc
(Fc+5MHz) ~ 2.4GHz 60dBc
   Coupling (In/Out) 40dB ± 1dB
   Temperature Range -10℃ ~ +45℃

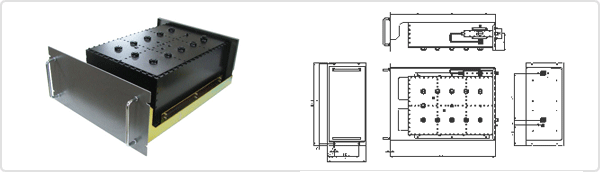

   Size (W x D x H)(mm) 482.6 x 615.0 x 221.4
   Power Rating (Ave.) 100W
   Coupling Port SMA - Female
   In/Out Port N - Female
   Weight (Max.) 40Kg
