Item |
Specifications |
| Frequency Range |
181.168~215.840MHz
(CH6~CH10) |
216.160~239.968MHz
(CH11~CH13) |

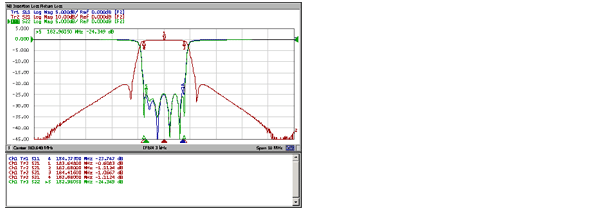

| Insertion
loss(Max.) |
1.5dB |
1.7dB |
| Ripple (Min.) |
1.5dB |
1.5dB |
| Return Loss (Min.) |
20dB |
| Attenuation (Min.) |
Fc กพ 0.97MHz |
8.0dBc |
| Fc กพ 1.75MHz |
40dBc |
| 0 ~ (Fc-5MHz) |
60dBc |
| (Fc+5MHz) ~ 2.4GHz |
60dBc |
| Coupling (In/Out) |
40dB กพ 1dB |
| Temperature Range |
-10กษ ~ +45กษ |
| Size (W x D x H) (mm) |
550.0 x 750.0 x 438.0 |
| Power Rating (Ave.) |
500W |
| Coupling Port |
SMA - Female |
| In/Out Port |
DIN - Female |
| Weight (Max.) |
40Kg |
|
|
|
|
