[Features]
......
- Hot Switching
......
- For indoor application
......
- Manual Switcing
Item
Specifications
Frequency Range
470 ~ 578 MHZ
Insertion Loss (Max)
NS
0.55dB
SS OUT1-Open
SS OUT1-Term
Ripple (Max.)
NS
0.2dB
SS OUT1-Open
SS OUT1-Term
Return Loss (Min.)
NS
17.7dB
SS OUT1-Open
SS OUT1-Term
Isolation (Min.)
NS OUT2
18dB
SS OUT1
Group Delay (Max.)
NS
20ns
SS OUT1-Open
SS OUT1-Term
Operation Power
300W
Temperature Range
-10¡É ~ +50¡É
Size (W x D x H) (mm)
480.0 x 300.0 x 99.0
In/Out Port
N - Female
¡Ø NOTE : NS-> Normal State, SS-> Switching State

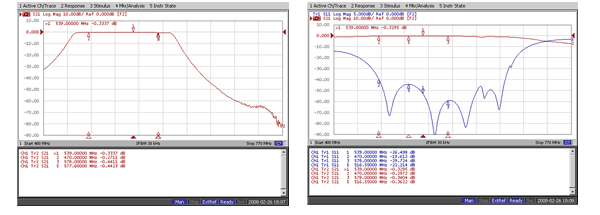

[Insertion Loss(NS)]
[Insertion Loss(SS)]
