| Item |
Specifications |
| Frequency Range |
1450 ~ 1500MHz |
| Insertion Loss (Max.) |
0.15dB |
0.2dB |
| Isolation (Min.) |
23dB |
| Return Loss (Min.) |
23dB |
| Amplitude Unbalance @ 1500MHz (Max.) |
0.2dB |
0.3dB |
| Phase Unbalance @ 1500MHz (Max.) |
5.0вк |
7.0вк |
| Input Power (Max.) |
350W |
350W |
| Output Power (Max.) |
700W |
1400W |
| Size (W x H x D)(mm) |
326.5 x 208.0 x 61.8- |
| Weight (Max.) |
7Kg |

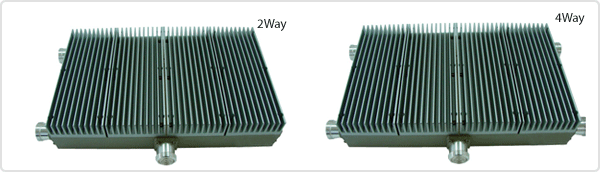

| [L-Band 2Way Combiner] |
[L-Band 4Way Combiner] |
|
 |
|
|
|
|
