Item
Adjacent
Non-Adjacent
   Insertion loss(Max.)

         Pass CH fc
0.8dB
0.5dB
                      fc2.79
1.6dB
0.7dB
          Ref. CH fc
0.2dB
0.2dB
                           fc2.79
1.6dB.
0.2dB
   VSWR(Max.)
1.1 : 1
   Isolation(Min.)
30dB
   Group Delay(Max.)

           Pass CH
800ns
300ns
           Ref. CH
800ns
300ns
   Leakage to Dummy(Min.)
14dB
17dB
   Operating Temp.
-10~+45
   Input power(Max.)
100W

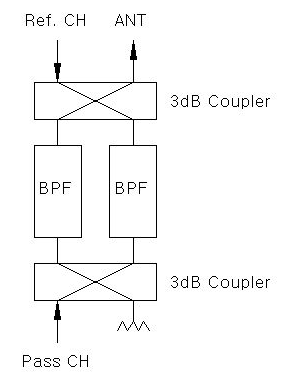

      [Block Diagram]
