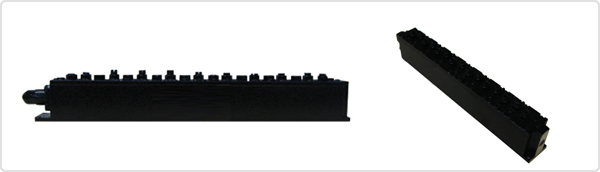

| [X-Band RX CH Filter] |
[X-Band TX CH Filter] |
|
| |
Item
|
Specifications |
RX CH Filter |
TX CH Filter |
Frequency Range |
7150 ~ 7720MHz (CH1 ~10) CH : Fc กพ 36.25งึ |
Insertion Loss (Max.) |
2.5dB |
1.4dB |
Ripple (max.) |
Pass Band |
0.8dB |
0.7dB |
In Band(16MHz) |
0.7dB |
0.6dB |
Return Loss (Min.) |
17dB |
Attenuation(Min.) |
100dBc @ Fc กพ 88.75MHz |
40dBc @ Fc กพ 73.5MHz |
| 70dBc @ Fc กพ 88.75MHz |
In Port |
SMA-Female |
SMA-Female(R/A) |
Out Port |
SMP - Male |
Temperature Range |
-40กษ~+65กษ |
|
|
|
|
