| Item |
Specifications |
| BPF1 |
BPF2 |
BPF3 |
BPF4 |
| Frequency range |
6.0~7.6GHz |
6.7~9.2MHz |
8.3~10.8MHz |
9.9~12.4MHz |
| Insertion Loss (Max.) |
2.5dB |
| Ripple (Min.) |
1.0dB |
| Return Loss (Min.) |
15dB |
| Attenuation |
55dBc Min. |
Fl-350MHz |
Fl-550MHz |
Fl-550MHz |
Fl-550MHz |
| 55dBc Min. |
Fh+500MHz |
Fh+800MHz |
Fh+750MHz |
Fh+750MHz |
| 30dBc Min. |
8.1~20GHz |
10~20GHz |
11.55~20GHz |
13.15~20GHz |
| IN/OUT Port |
GPO Conn |
| Weight (Max.) |
15 g |

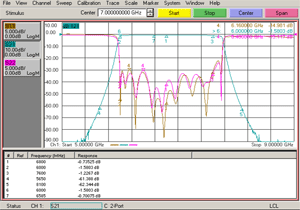

| [BPF1] |
 |
| *Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
