Item Specifications
CH1 CH2 CH3 CH4 CH5 CH6
   Frequency range 30~42.8
MHz		 42.8~62
MHz		 62~88
MHz		 108~152
MHz		 225~330
MHz		 330~470
MHz
   Insertion Loss (Max.) 1.0dB
   Return Loss (Min.) 15dB
   Power (Max.) 10W
   Harmonic
   Rejection		   50dBc
  Min.
  Rejection		 60~128.4
MHz		 60~128.4
MHz		 60~128.4
MHz		 60~128.4
MHz		 60~128.4
MHz		 60~128.4
MHz
   Isolation
   Temperature		   40dBc
  Min.
  Rejection		 108~470 MHz 108~470 MHz 108~470 MHz ~88MHz,
225~470MHz		 ~152MHz ~152MHz

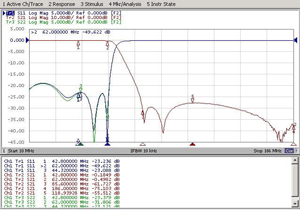

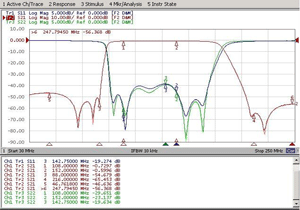

[CH2] [CH4]
*Please click a picture above to open an enlarged version in a different window.
