| Item |
Specifications |
| BPF1 |
BPF2 |
BPF3 |
| Frequency range |
1.8 ~ 3.35GHz |
3.35 ~ 4.69GHz |
4.69 ~ 6.2GHz |
| Insertion Loss (Max.) |
1.0dB |
| Ripple (Min.) |
1.0dB |
| Return Loss (Min.) |
11dB |
| Attenuation |
20dBc Min. |
DC ~ 1.35GHz |
DC ~ 2.9GHz |
DC ~ 4.24GHz |
| 10±1.5 dB |
Fl - 230MHz |
Fl - 230MHz |
Fl - 230MHz |
| 10±1.5 dB |
Fh+230MHz |
Fh+230MHz |
Fh+230MHz |
| 20dBc Min. |
3.8 ~ 5GHz |
5.14 ~ 8GHz |
6.65 ~ 9GHz |
| Group Delay (Max.) |
4 ns |
4 ns |
4 ns |
| IN/OUT Port |
Drop IN |
| Weight (Max.) |
15 g |
13 g |
13 g |

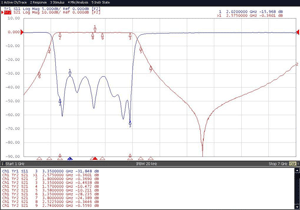

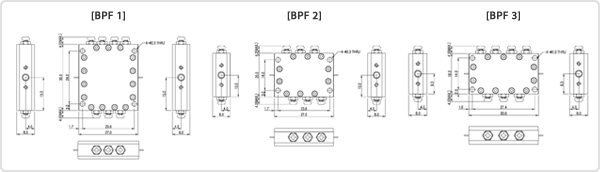

| [BPF1] |
 |
| *Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
