| Item |
Specifications |
| BPF1 |
BPF2 |
BPF3 |
| Frequency range |
2.0 ~ 3.65GHz |
3.15 ~ 4.85MHz |
4.35 ~ 6.0MHz |
| Insertion Loss (Max.) |
2.5dB |
| Ripple (Min.) |
1.0dB |
| Return Loss (Min.) |
15dB |
| Attenuation |
60dBc Min. |
Fl-650MHz |
Fl-800MHz |
Fl-850MHz |
| 60dBc Min. |
Fh+170MHz |
Fh+1600MHz |
Fh+1500MHz |
| 30dBc Min. |
7.5~12.0MHz |
7.5~15.0MHz |
7.5~18.0MHz |
| IN/OUT Port |
GPO Conn. |
| Weight (Max.) |
26 g |

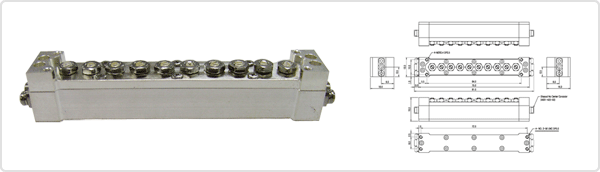

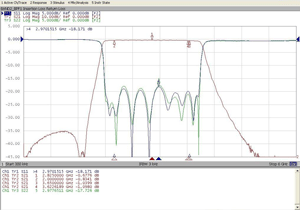

| [BPF1] |
 |
