| Item |
Specifications |
| BPF5 |
BPF6 |
BPF7 |
BPF8 |
| Frequency range |
11.5 ~ 14.0GHz |
13.1 ~ 15.6MHz |
14.7 ~ 17.2MHz |
16.3 ~ 18MHz |
| Insertion Loss (Max.) |
2.5dB |
| Ripple (Min.) |
1.0dB |
| Return Loss (Min.) |
11dB |
| Attenuation |
55dBc Min. |
Fl-600MHz |
Fl-600MHz |
Fl-600MHz |
Fl-400MHz |
| 55dBc Min. |
Fh+750MHz |
Fh+750MHz |
Fh+700MHz |
Fh+450MHz |
| 30dBc Min. |
14.75~30GHz |
16.35~30GHz |
17.9~40GHz |
18.45~40GHz |
| IN/OUT Port |
GPO Conn |
| Weight (Max.) |
15 g |

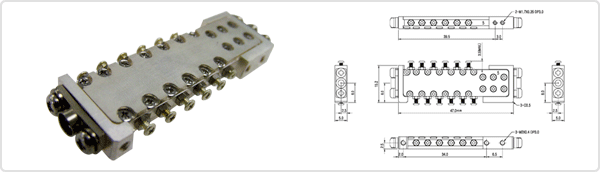

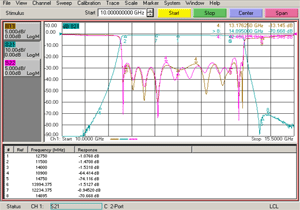

| [BPF5] |
 |
| *Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
