Item
|
Specifications |
AM Filter(LPF) |
FM Filter(BPF) |
UHF Filter(BPF) |
Frequency Range |
2 ~ 30MHz
|
30 ~ 88MHz |
200 ~ 512MHz |
Insertion Loss (Max.) |
1.5dB |
1.5dB |
1.0dB |
Ripple (Max.) |
1.0dB |
1.0dB |
1.0dB |
Return Loss (Min.) |
15dB |
15dB |
15dB |
Attenuation (Min.)
|
33.5MHz |
10dB |
DC ~ 27.5MHz |
10dB |
DC ~ 160MHz |
35dB |
| 35MHz~2.6GHz |
35dB |
DC ~ 25MHz |
35dB |
614MHz~2.6GHz |
35dB |
| 200MHz~2.6GHz |
35dB |
In/Out Port |
SMA - Female |
Input Power |
100W |
50W |
50W |

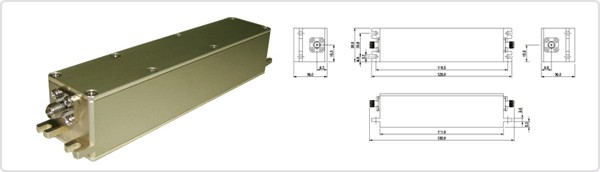

Size(W x D x H)(mm) |
30.0 x 30.0 x 130.0 |
Weight |
250g |
|
|
|
|
