| Item |
Specifications |

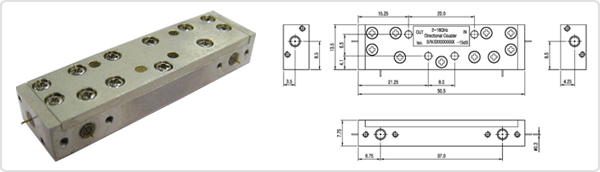

| 2~18GHz Directional Coupler |
| Frequency range |
2 ~ 18 GHz |
| Insertion Loss (Max.) |
1.8 dB |
| Return Loss (Min.) |
Typical 14.0 dB |
| Max 10.9 dB |
| Coupling (Max.) |
15 ± 0.8 dB |
| Band Ripple (Max.) |
0.8 dB p-p (4GHz Step.) |
| Frequency Sensitivity (Max.) |
กพ 0.4 dB (40MHz Step.) |
| Isolation (Min.) |
20.0 dB |
| CW Input Power |
2W |
| Operating Temperature |
-45℃ ~ +85℃ |
| Weight |
10.3 g |
| Package Type |
Drop IN |
| [Insertion Loss] |

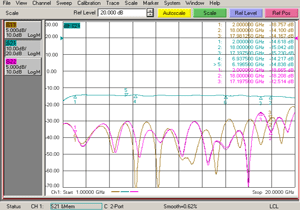

[Coupling] |
 |
 |
| *Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
