| Item |
Specifications |
| Frequency range |
7.1 ~ 8.9GHz |
| Insertion Loss (Max.) |
1.5dB |
| Ripple (Min.) |
1.0dB |
| Return Loss (Min.) |
11.0dB |
| Attenuation |
20dBc Min. |
DC ~ 6.4GHz |
| 20dBc Min. |
9.7 ~ 12GHz |
| Group Delay (Max.) |
1 ns |
| IN/OUT Port |
Drop IN |
| Weight (Max.) |
10 g |

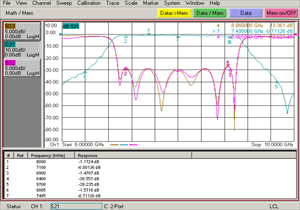

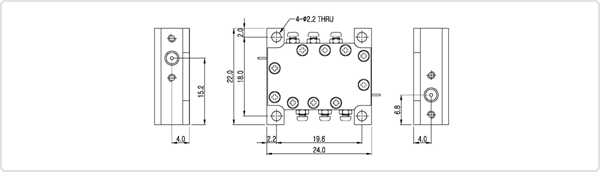

| *Please click a picture above to open an enlarged version in a different window. |
|
|
|
|
