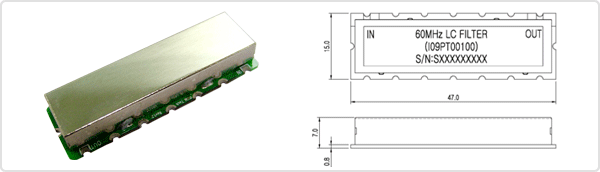

Item Specifications 60MHz LC BPF    Frequency range 56 ~ 64 MHz    Insertion Loss (Max.) 6.5 dB (@3dB BW)    Return Loss (Min.) 14.0 dB    3dB Bandwidth (Max.) 9 ~ 11 MHz    Attenuation (Min.) 40 dBc (Fc±10MHz)    Operating Temperature -40℃ ~ +85℃    Dimension (Max.) 47.0×15.0×7.5    Input /Output Connectors SMD *Please click a picture above to open an enlarged version in a different window.
